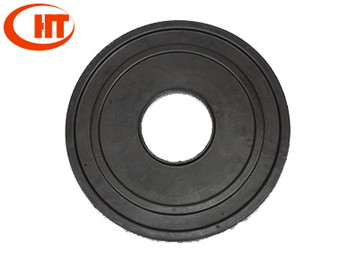

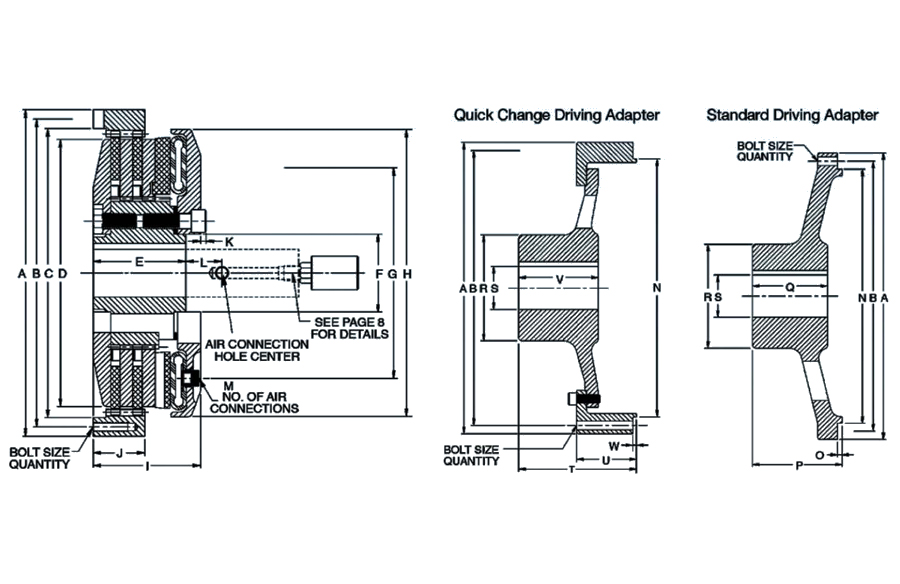

产品名称：推盘离合器

静态扭矩 Static Torque

动态扭矩 Dynamic Torque

总重量 Total Weight

转动惯量 Total Inertia

主动齿圈及摩擦盘重量 Ring&FD Weight

主动齿圈及摩擦盘转动惯量 Ring&FD Inertia

小值 Minimum

大值 Maximum

lb-in

N·m

lb-in

N·m

lbs(kgs)

lb·ft²(kg·m²)

lbs(kgs)

lb·ft²(kg·m²)

inches(mm)

inches(mm)

108

7,300

835

5,500

630

3,600

30(14)

2.4(0.102)

8.3(3.7)

1.2(0.048)

0.94(23.8)

1.94(49.2)

208

14,600

1,670

11,000

1,260

3,600

20(23)

4.3(0.179)

17(7.5)

2.3(0.098)

0.94(23.8)

1.94(49.2)

308

21,900

2,505

16,500

1,890

3,600

67(30)

6.0(0.254)

25(11)

3.5(0.149)

1.13(28.6)

1.94(49.2)

111

16,600

1,905

12,450

1,425

2,650

55(25)

9.2(0.388)

19(9)

5.4(0.227)

1.25(31.8)

3.0(76.2)

211

33,200

3,810

24,900

2,850

2,650

96(44)

16.4(0.690)

37(17)

10.4(0.438)

1.25(31.8)

3.0(76.2)

311

49,800

5,715

37,350

4,275

2,650

132(60)

22.9(0.965)

52(24)

15.3(0.645)

1.25(31.8)

3.0(76.2)

114

29,150

3,345

21,900

2,510

2,180

124(56)

35.2(1.49)

38(17)

17.1(0.721)

2.13(54.0)

3.25(82.6)

214

58,300

6,690

43,800

5,020

2,180

176(80)

47.9(2.02)

57(26)

24.6(1.04)

2.13(54.0)

3.25(82.6)

314

87,450

10,035

65,700

7,530

2,180

239(109)

72.0(3.04)

97(44)

42.3(1.79)

2.13(54.0)

3.25(82.6)

114H

35,400

4,065

26,600

3,050

2,180

161(73)

41.2(1.74)

38(17)

17.1(0.721)

2.13(54.0)

3.25(82.6)

214H

70,800

8,130

53,200

6,100

2,180

212(96)

57.1(2.41)

57(26)

24.6(1.04)

2.13(54.0)

3.25(82.6)

314H

106,200

12,195

79,800

9,150

2,180

290(132)

79.6(3.36)

97(44)

42.3(1.79)

2.13(54.0)

3.25(82.6)

116

39,750

4,560

29,800

3,420

1,900

218(99)

60.6(2.56)

41(19)

23.1(0.973)

2.13(54.0)

3.41(86.6)

216

79,500

9,120

59,600

6,840

1,900

296(134)

87.9(3.71)

79(36)

41.8(1.76)

2.13(54.0)

3.41(86.6)

316

119,250

13,680

89,400

10,260

1,900

380(172)

117(4.93)

116(53)

61.2(2.58)

2.13(54.0)

3.41(86.6)

118

66,400

7,620

49,800

5,715

1,750

277(125)

90(3.78)

44(20)

28.3(1.19)

2.38(60.3)

3.88(98.4)

218

132,800

15,240

99,600

11,430

1,750

397(180)

142(6.00)

95(43)

61.6(2.60)

2.38(60.3)

3.88(98.4)

318

199,200

22,860

149,400

17,145

1,750

501(227)

189(7.97)

144(66)

93.3(3.94)

2.38(60.3)

3.88(98.4)

118H

82,000

9,405

61,500

7,055

1,750

294(134)

100(4.22)

44(20)

28.3(1.19)

2.38(60.3)

3.88(98.4)

218H

164,000

18,810

123,000

14,110

1,750

414(188)

151(6.36)

95(43)

61.6(2.60)

2.38(60.3)

3.88(98.4)

318H

246,000

28,215

184,500

21,165

1,750

525(238)

199(8.40)

144(66)

93.3(3.94)

2.38(60.3)

3.88(98.4)
